Nor103

Class 1 sound level meter

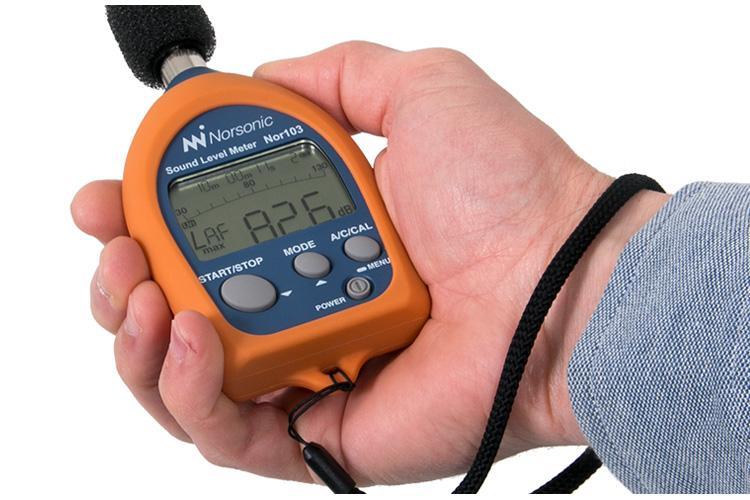

This light weighted and extremely compact sound level meter is the world’s smallest class 1 instrument.

his sound level meter has been designed specifically so that it will fit inside your pocket, comfortably and easily whilst still ensuring you the reliability and precision required for a class 1 measurement. The Nor-103 is the perfect all-purpose tool for simple analysis of noise at work, environmental noise and basic product noise determination.

The Nor103 can be used for noise measurements in bars and restaurants, during concerts and events or in your garage to check that exhaust noise from vehicles and motor-bikes are within local legal limits. It has a simple interface with 3 function keys and a clean graphical screen displaying large fonts and a big graphical dB “speedometer”. With its’ internal memory to store multiple results, and the low power consumption, Nor103 is a reliable and easy to use tool for your noise measurements.

Features:

  • Class 1 Sound Level Meter IEC61672
  • 30 to 137 dB RMS, 60-140 dB Peak C without range switching
  • Measure Lp, Leq, Lmax, LE and LCpeak
  • Frequency range: from 10 Hz to 20 kHz
  • Frequency weighting: A and C
  • Time weighting: Fast / slow
  • Measurement durations: 1, 5, 10, 60 min
  • Quick start up and easy operation

Specifications:

  • Standard compliance: Measurement Law IEC 61672-1:2013 class 1, CE mark (EMC Directive 2004/108/EC), WEEE Directive
  • Measurement functions: Instantaneous Sound level Lp, equivalent continuous sound level Leq,
  • Sound exposure level LE, Maximum sound pressure level Lmax
  • C weighting peak sound level LCpeak (when peak range is selected)
  • Microphone: 1/2-inch electret condenser microphone Model: UC-59
  • Sensitivity: -27 dB±2 dB (re.1 V/Pa)
  • Windscreen: Conforms to IEC 61672-1 Class 1 also with windscreen mounted
  • Measurement level range:
  • Wide range: A weighting: 30 dB to 137 dB, C weighting: 40 dB to 137 dB
  • Peak range: A weighting: 65 dB to 137 dB, C weighting: 65 dB to 137 dB
  • C weighting peak sound level: 68 dB to 140 dB
  • Total range: 32 dB to 137 dB (A weighting, 1 kHz)
  • Inherent noise level:
  • Wide range: A weighting: 21 dB or less, C weighting: 29 dB or less
  • Peak range: A weighting: 54 dB or less, C weighting: 54 dB or less
  • Frequency range: 10 Hz to 20 kHz
  • Frequency weighting: A and C
  • Time weighting: F (fast) and S (slow)
  • RMS detecting circuit: Digital processing
  • Sampling frequency: 40 kHz
  • Numeric display: 0.1 dB resolution
  • Bar graph: 30-130dB, resolution 5 dB, display update cycle 0.1 s
  • Power: Uses 2 size LR03 (ANSI AAA) batteries
  • Current consumption: Approx. 90 mA (when operating at 3 V)
  • Environmental conditions: ÷10°C to 50°C, 10% to 90% RH (No condensation)
  • Dimensions: 130 mm (H) × 63 mm (W) × 23.5 mm (D)
  • Weight: 105 g (incl. batteries)
